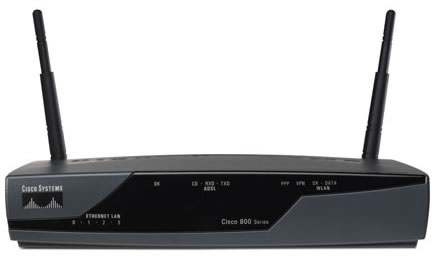

When the router is working correctly the following lights should be;
OK [ON]
CD [ON]
RXD [FLASHING]
TXD [FLASHING]
PPP [ON]
OK – DATA [FLASHING]

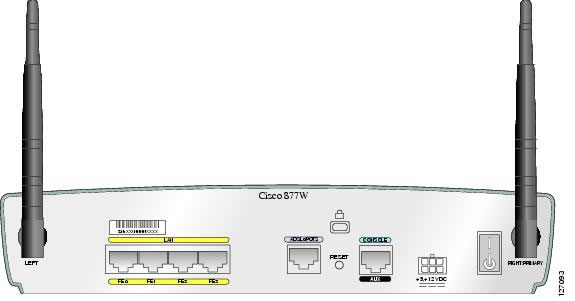

| The Yellow Cable which can plug in to any of the Yellow sockets on the router. | Lilac cable goes from the Lilac socket on the router into the ADSL filter |
| Plugs directly into the Eathernet socket on the till. |  |
| which plugs into the phone socket on the wall. | |
 |
